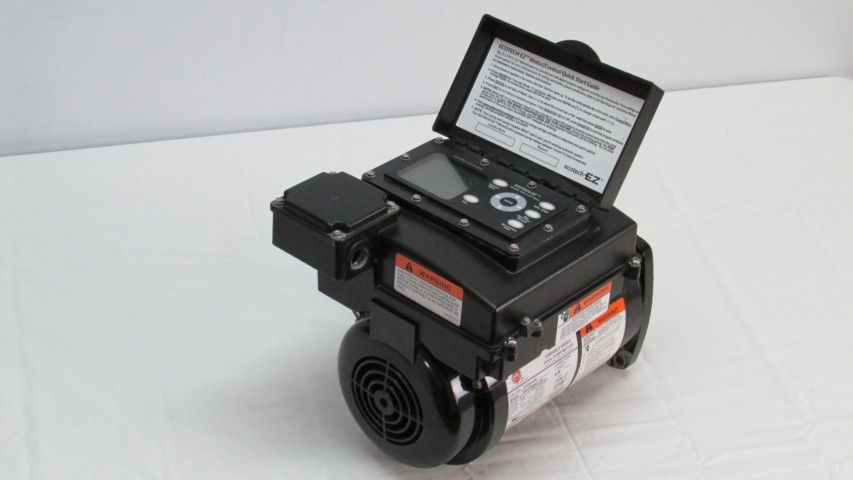

US Motors Ecotech EZ Variable Speed Motor Breakdown & Dissassembly |
We dissassemble the US Motors Ecotech EZ Pool Pump Motor |

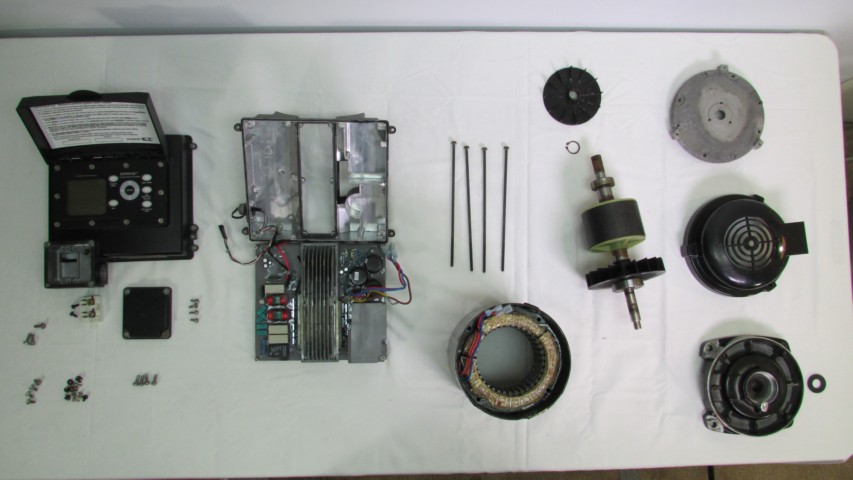

Overview of all the parts |

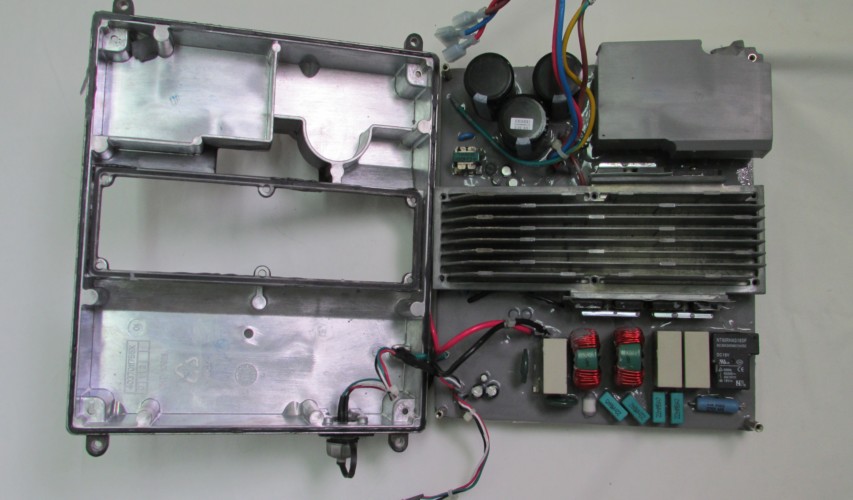

Close up of the controller motherboard assembly (All parts are encapsulated
in silicone like material for moisture resistance and vibration protection) |

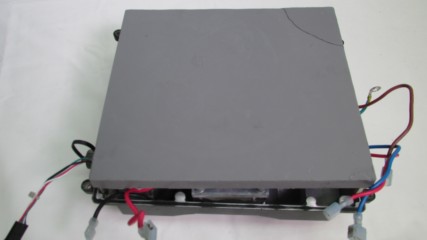

Bottom of motherboard is totally sealed |

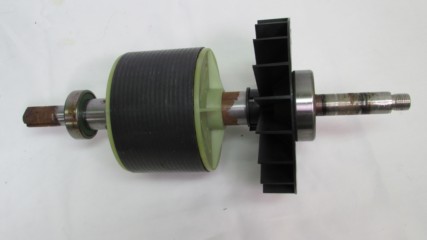

Permanent Magnet Rotor (Note the large 304 Bearing on the drive end) |
Front End Bell has lip seal to delay water from entering motor in event of seal leakage |

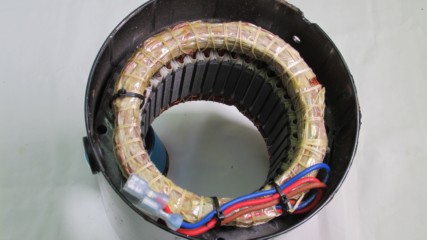

Robust 3 Phase Windings in 56 Frame |

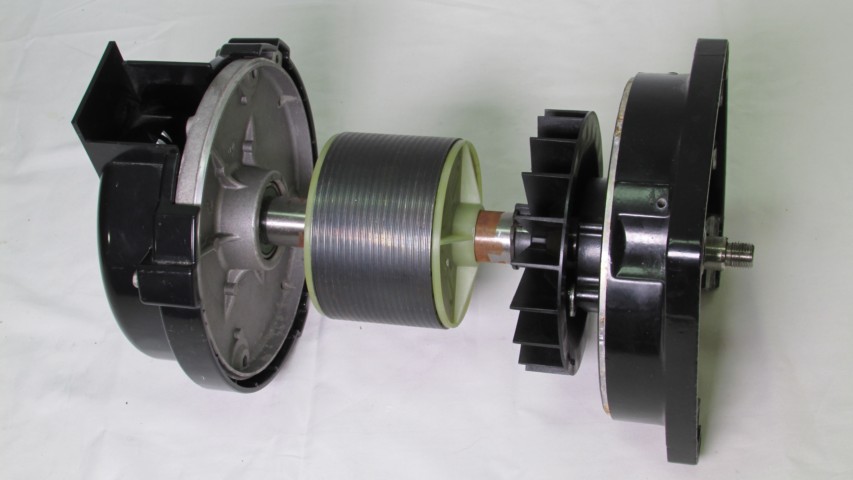

Overview of mechanicals (Note the internal cooling fan) |
